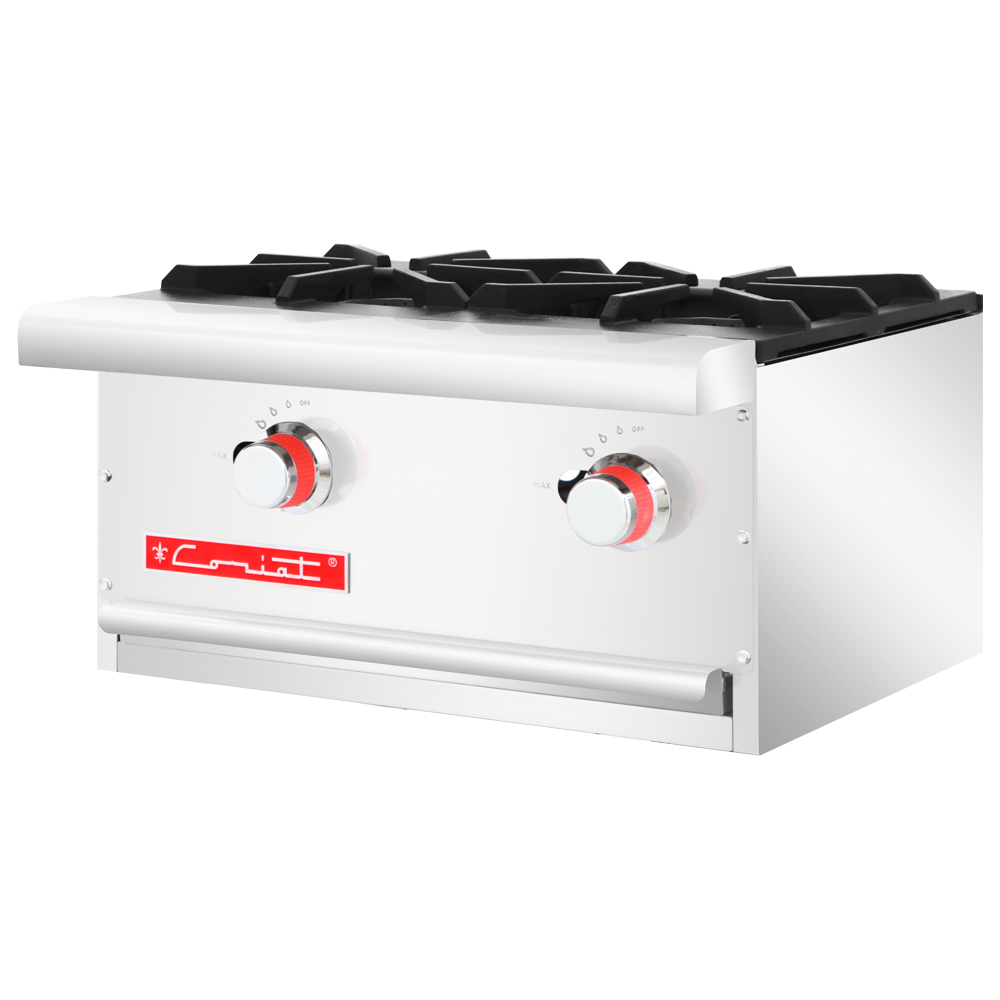

Range PCH-2 discontinued model

• 2 Solid cast iron octagonal burners of 24,000 Btu/hr each.

• 2 upper cast iron grills mounted on a semi-sealed stainless steel cover. 304.

• 2 individual A.Stainless steel pilots. with mushroom-type threaded head.

• 2 imported pilot flame adjustment valves, CSA certified for commercial use.

• 2 imported gas valves, CSA certified for commercial use.

• 1 Tray to capture runoff.

• 2 Zinc knobs with red silicone thermal insulation.

• Stainless steel adjustable legs.

• Total exterior measurements, without packaging: front: 23.2", depth: 21", height without legs: 12.5" height with legs:19.75.

• Weight: 112 Lb.

• Includes pressure regulator and nozzle kit for conversion from LPG gas to NG.

• ANSI Z83.11-2016 Certification • CSA 1.8-2016.

• NSF/ANSI 4 Certification - 2016.

Warranty

CAD (DWG)
