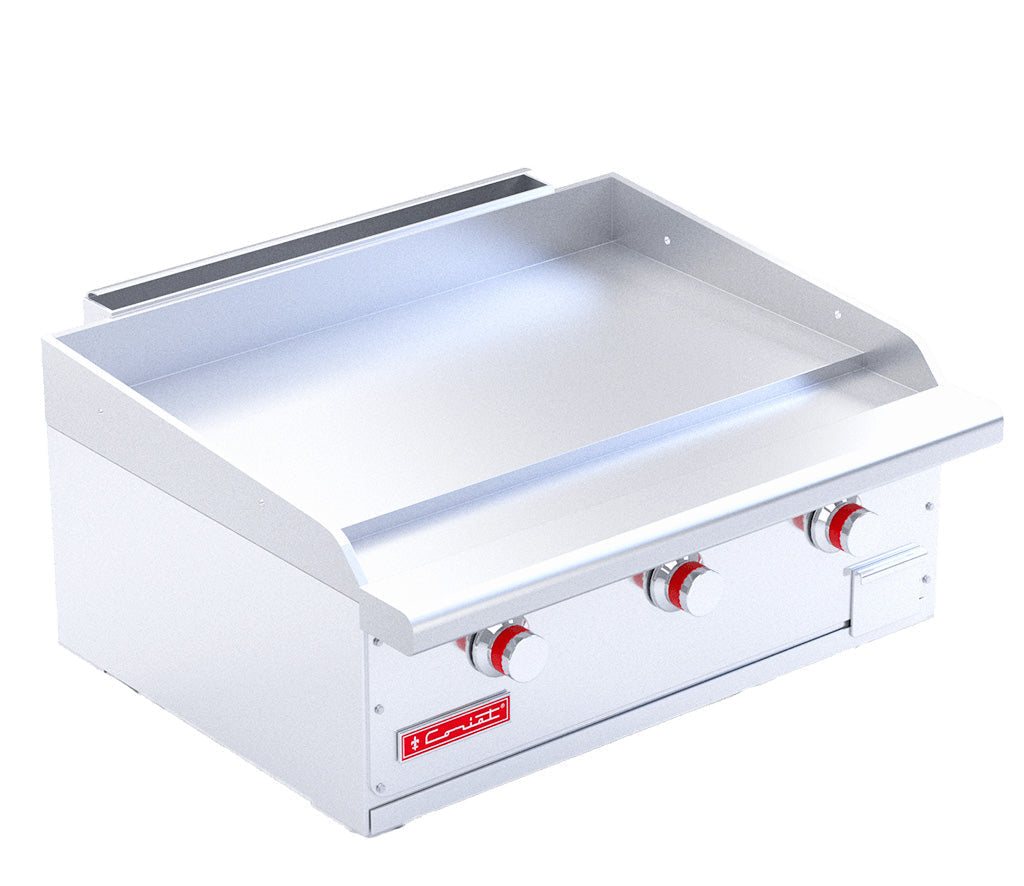

Griddle CV-3 discontinued model

• External and internal sheet metal parts in stainless steel.

• 3/4” thick polished cold rolled steel plate, fully welded to frame to prevent grease collection.

• Stainless steel grease drawer.

• 21,000 Btu/h “U” type stainless steel burners each 12”. 63,000 BTU´s Total

• Stainless steel tubing for pilots.

• Independent manual controls for each 12” section.

• Zamak die cast knobs with set screws.

• Gas pressure regulator.

• Total exterior measurements, without packaging: front: 34.6", depth: 30.7", height without legs: 12.5" height with legs:19.75.

• Stainless steel adjustable legs.

• Weight: 295 Lb.

•CSA design certified, NSF listed.
