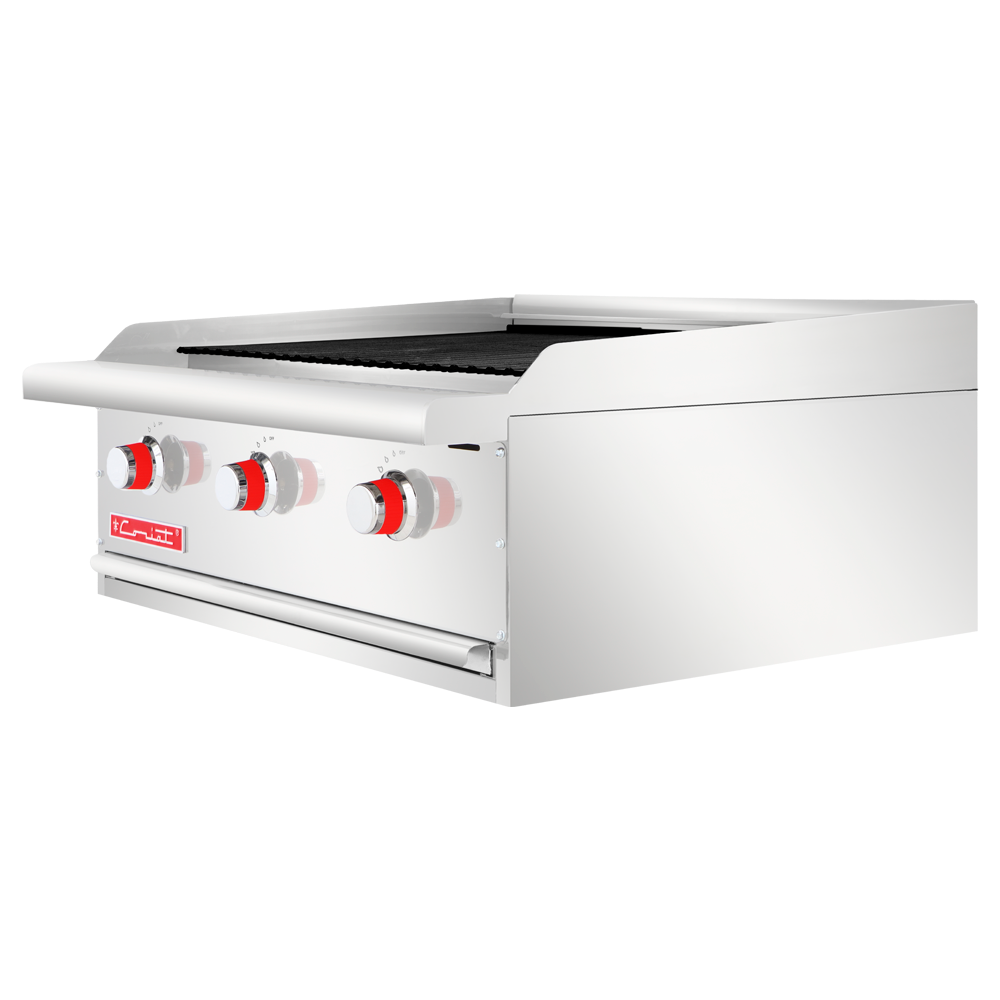

Broiler ACV-3 discontinued model

• External and internal sheet metal parts in stainless steel.

• 14 gauge all welded firebox

• Reversible top cast iron grates with two levels.

• Lava rock layer per section.

• Removable stainless steel grease tray, for fast cleaning.

• 27,500 Btu/h “U” type stainless steel burners each 12”. 82,500 BTU´s Total

• Independent manual controls for each 12” section.

• Individual stainless steel no clog pilots.

• Zamak die cast knobs with set screws.

• Gas pressure regulator.

• Stainless steel adjustable legs.

• Total exterior measurements, without packaging: front: 34.6", depth: 30.7", height without legs: 12.5" height with legs:19.75.

• Weight: 207 Lb.

• CSA design certified, NSF listed.
