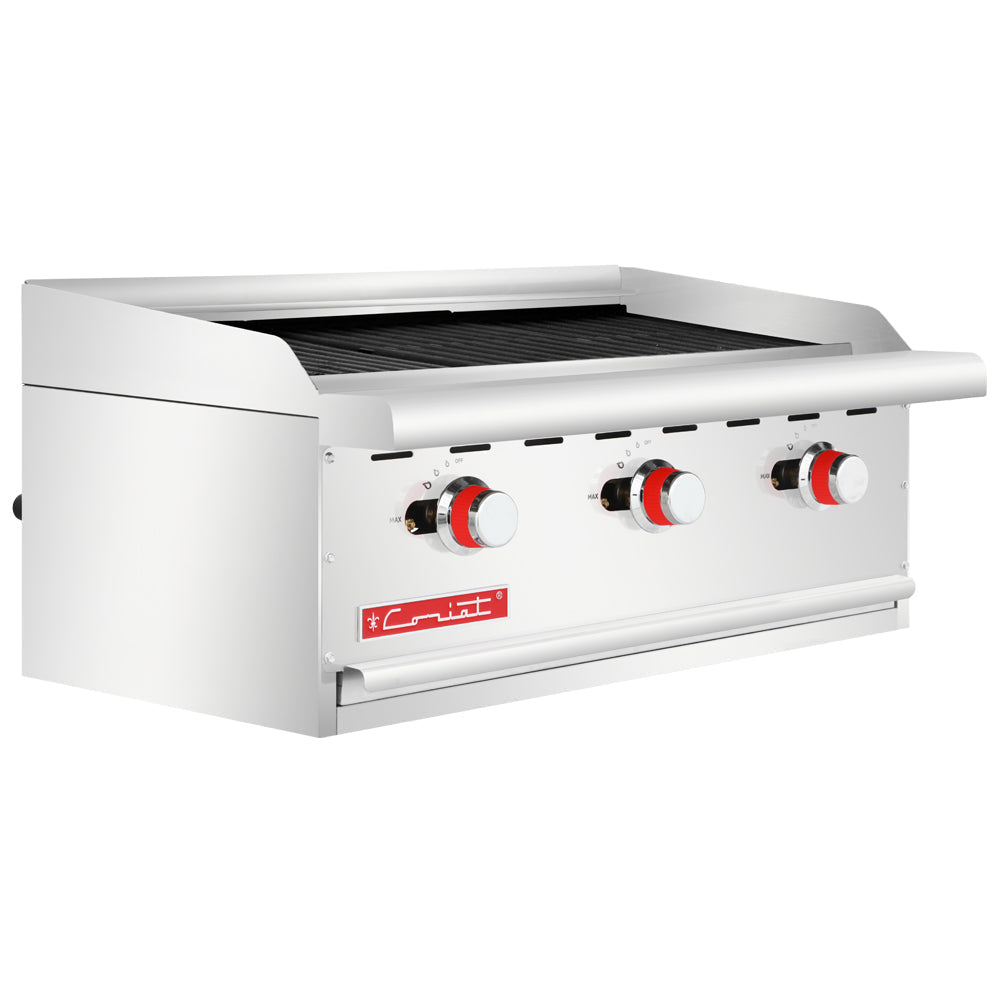

Broiler ACH-3 discontinued model

• 3 reversible cast iron grills, useful area: front: 11.42", depth: 13.38 each.

• 1 layer of refractory stone per section.

• 3 Stainless steel "U" burners. of 14,000 Btu/h each. 42,000 BTU´s Total

• 3 individual A.Stainless steel pilots. with mushroom-type threaded head.

• 3 imported pilot flame adjustment valves, CSA certified for commercial use.

• 3 imported gas valves, CSA certified for commercial use.

• 1 Tray to capture runoff.

• 3 Zinc knobs with red silicone thermal insulation.

• Total exterior measurements, without packaging: front: 34.6", depth: 21", height without legs: 12.5" height with legs:19.75.

• Stainless steel adjustable legs.

• Weight: 163 Lb.

• Includes pressure regulator and nozzle kit for conversion from LPG gas to NG.

• ANSI Z83.11-2016 Certification • CSA 1.8-2016.

• NSF/ANSI 4 Certification - 2016.

Warranty

CAD (DWG)
